Products

DESCRIPTION

Basic Info

Driven Type	Electric
Classification	Automatic Vertical Round Bottle Labeling Machine
Packaging Material	Plastic
Packaging	Bottles
machine Weight	200kg
Machine Size	2000*1400*1300mm
Package	Wooden Box
Label	Self Adhesive Labeling Machine
Bottle	Round Bottle
Transport Package	Wooden Box
Specification	Stainless steel
Trademark	XUEYING
Origin	China, Zhengzhou
HS Code	8422309090
Production Capacity	3000

Product Description

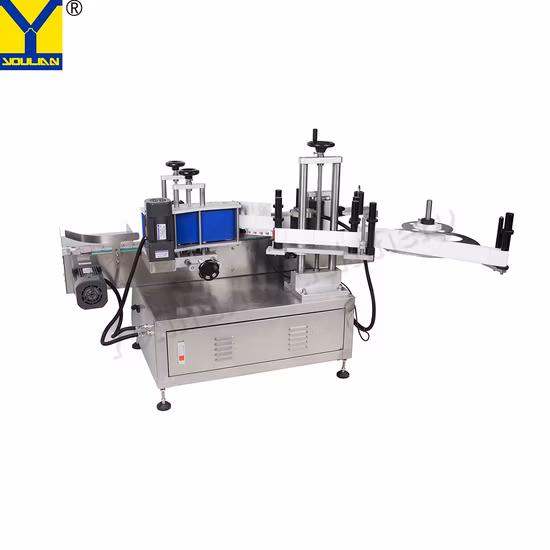

Fully auto round bottle labeling machine
For the pharmaceutical, food, cosmetic and other industries round bottle labeling, can be affixed to the week and semicircular labeling.
Application:
For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.Application: require circumferential surface of the membrane attached label or product.Industry: Widely used in food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industries.Application: PET round bottle labeling, labeling plastic bottles, canned food and so on.

Working Process:
* Core works: the product of bottle body separated, the sensor detects the product passes the signal returned to the labeling control system,the control system in place to control the motor sends label affixed to the product subject to labeling and position, product flow the standard unit cover,covered with standard rotation driven products, the label is roll coating, a label attached to the action is completed.* Procedure: put the product (which can be accessed line) -> product transfer (device automatically) -> Products minutes away-> Product Testing -> Labeling -> cover marked -> collect the labeling products.

Detailed Photos

Product Parameters

Name	Automatic labeling machine
Output speed	20-200bottle/min
Bottle diameter	30-120mm
Label height	15-200mm
Label length	15-300mm
Precision	+1mm
Rollinside	76mm
Rollinside diameter	350mm
Power supply	220V 1.5KW 50/60HZ
Printer with air	0.4-0.6Mpa
Machine size	2000*1400*1300mm
Weight	200kg
Package size	2120*940*1500mm

Company Profile

Henan Xueying Machinery Equipment is a professional international machinery and equipment manufacturer and exporter integrating science, industry and trade. It is located in Zhengzhou, a well-known transportation hub in China, the hinterland of the Central Plains, with an advantageous geographical location and convenient transportation. The company has a professional technical team and R&D team. Mainly in the design and production of filling machines, capping machines, labeling machines, packaging machines, etc., with a history of more than ten years. Bingzhe "innovation, quality, integrity" business philosophy. The company has won the trust and support of well-known domestic and foreign companies, and has established long-term cooperative partnerships.

After Sales Service

The warranty of the equipment above is 1 year, if there's any problem of the equipment not caused by unreasonable operation in one year, we will help you solve it (If it is small problem like spare part is broken, we will send you freely; other small problem we will guide you to solve it by phone or e-mail; If the problem can not be solved by guiding, we will let technician come to your place to mend it after confirmation). After the warranty, the equipment is also maintained by supplier permanently, supplier will charge material cost.
